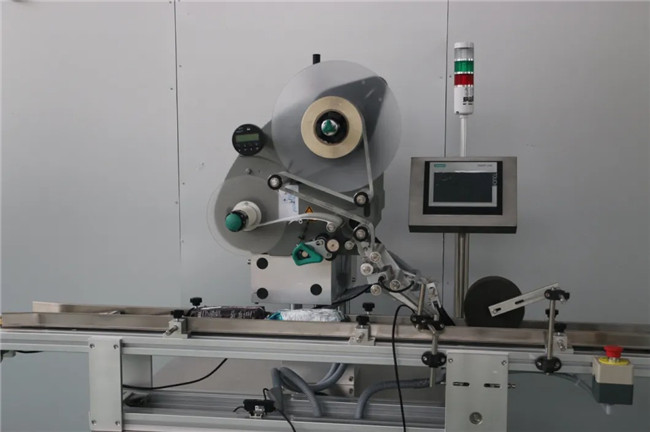

Automatic Sticker Doypack Box Carton Cup Top Surface Labeling Machine

Labeling on the top surface of different kinds products, such as box, bottle,cap,cans,jars,carton and so son. (P.S. labeling machine can be designed according to your needs)

Automatic top self adhesive sticker labeling machine is engineered to apply self-adhesive labels onto objects with flat surfaces with ease and precision for consistent, professional-looking products, such as boxes, cosmetics, packets, bags, envelopes, cartons, food trays, containers, blisters etc.

This pressure sensitive top labeling machine can be integrated onto existing production lines or be fed manually, top labeling sticker machines are used for promotional and product information labeling, anti- counterfeit/product safety measures application and bar code application. Sample products labeled with these units include baby wipes, batteries, dairy products, first aid kits, herbs, manuals, bakery products, medical instrument, machine parts, confectionery and many others.

Key Features

♦ Heavy-duty stainless steel constructed anodized aluminum components

♦ Electronic components are world famous brand

♦ Capable of labeling on flat surface

♦ PLC control and user friendly HMI

♦ Servo motor drive delivers accurate and high-speed repeatable labeling

♦ Automatic synchronized label head and conveyor belt

♦ Power assisted web take up

♦ Low or missing label detection with automatic stop system to prevent mislabeling

♦ Non-contact photo eye sensors

♦ Label counter

Available Options

♦ Hot stamp printing coder with base (prints characters directly onto the label)

♦ Clear Label Sensors (capable of detecting transparent labels)

Technical Specifications

Driving Mode	German Avrey brand
Yield(pcs/min)	30-200
Operating direction	Left or Right
Conveyor Speed(m/min)	≤30
Labeling Accuracy	±1.0 mm
The inner diameter of label roll	76 mm
The outer diameter of label roll	350 mm(max)
The suitable label size	Width 10-110 mm  length 5-600 mm
The suitable size of labeling objects	Can customized depends on client product
Printer use air	5kg/cm ²
Voltage (In China)	AC220V 50/60HZ Single phase (Can customized as client need)
Power(w)	600W
Weight(kg)	260
Machine size	1800(L) 800 (W)  1300 (H) mm

Main Electrical Configuration:

No	Name	Unit	Brand
1	PLC control system	1 Set	SIEMENS
2	Touch-screen	1 Piece	SIEMENS
3	Servo motor	2sets	America AB
4	Drive	2sets	America AB
5	Frequency converter	1 set	SIEMENS
6	photoelectric sensor (check bottle)	1 set	Japan KEYENCE
7	Photoelectric sensor (Check opaque label)	2 sets	German Leuze
	Photoelectric sensor (Check opaque and transparent label)	2 sets	German Leuze
8	Main transport motor	1 set	Switzerland ABB
9	Separate bottle Motor	2 sets	German JSCC
