Automatic Upper And Down Adhesive Labeling Sticking Machine

custom flat surface card soap bar upper down side double sided labeling machine automatic plane objects labeller equipment

Device Characteristics

1. The whole machine is made of SUS304 stainless steel and the anode handling superior aluminum.

2. Machine-wide adoption of a mature technology PLC control system, to the whole stable and high speed

3. Operating system using touch-screen control, simple, practical and efficient.

4. It has pneumatic coder system with high technology, printing quickly, stably and with clear writing.

5. The large scope of application, the flat labeling of objects in various shape

6. Roller bottles attached to the input, so that labels attached to a more solid.

Technical Parameter

Voltage	AC220V50/60HZ
Power	500W
Size appearance	1800(L) 700(W) 1800(H) mm
Labeling Speed	200pcs/ min
Labeling accuracy	±1 mm (subject to the roughness of the plant)
Printer to use air	5 kg / cm2
Suitable height of objects	1-100 mm (which can be adjusted by your requirements)
Suitable wide of objects	10-80 mm (which can be adjusted by your requirements)

The Scope of Application

The upper and downer labeling of different size of packing objects, like medical, food, chemical, cosmetics, electronic, tapes, CD, cartons and so on.

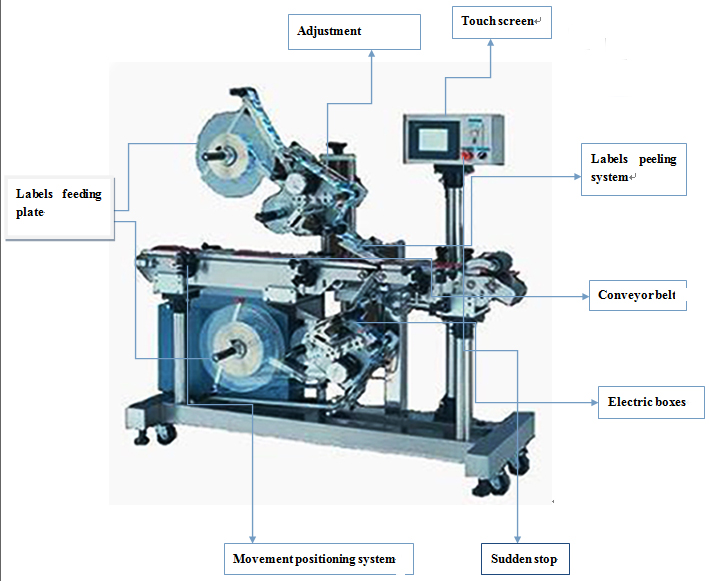

Touch screen information

Conveyor vertical and horizontal position adjustable supportor

Labeller vertical and horizontal position adjustable supportor

Labeller head

Height and width adjustable labeller conveyor

Final products for labeling samples

Guarantee: for all the machine, it claims three years for guarantee. Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD100 per day. also you can go to our factory to do training.

After sales service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
